Long Lasting LED Emergency Lighting Kit Driver Power Supply Battery Ballast for Triproof Light

توضیحات محصول

Factory Price 3-Hour Long-Lasting LED Emergency Lighting Kit Driver Power Supply & Battery Ballast for Triproof Light Ceiling Light Highbay Light Basemnt

1.Self-detect
2.Constant power emergency output
3.Suits for LED fitting with external LED driver
4.With built-in battery
5.With multi-protection function;
battery overcharge protection;
battery over-discharge protection;
output overload protection;
short-circuit protection.

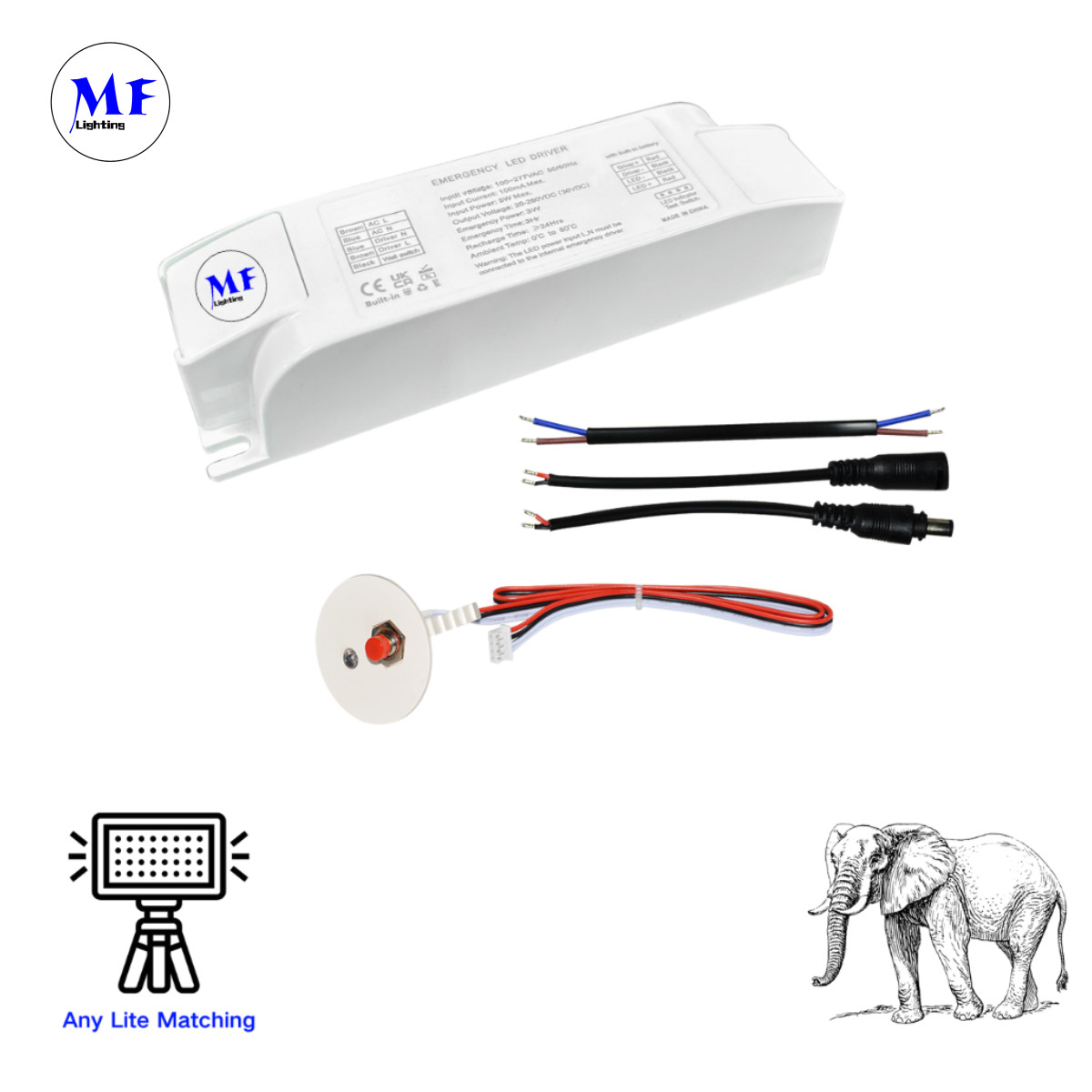

6.Accessary test switch and LED indicator
In the state of the power off,to connect with the battery,static current at the battery terminal is 0uA

Technical Data

Input voltage	100-277 Vac 50/60Hz
Input current	0.003A Max.@230Vac
Input wattage	<5.0W
Power factor	≥0.5@230 Vac
Battery charging current	350mA Max.
Battery charging time	>24h
Emergency output Voltage	3W 15-85VDC Max.90VDC
	5W/8W 30-240VDC Max.250VDC
Storage Temperature	-20-40ºC
Electric Strength	2000Vac 5mA(input to output)
IP Rating	IP20
Maximum shell temperature	75ºC
Warranty	3 Years
Relevant standard	IEC61347-2-7/IEC61347-1/EN55015

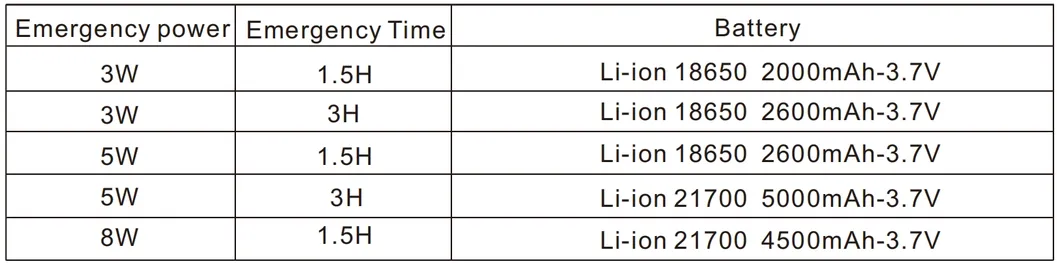

Ordering Information

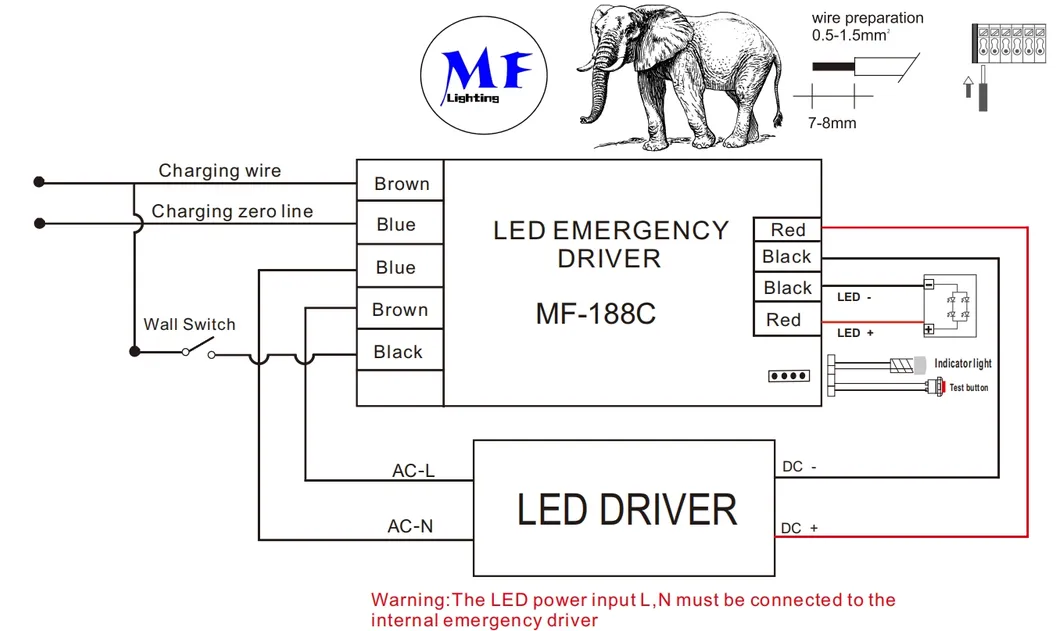

Wiring Diagram:

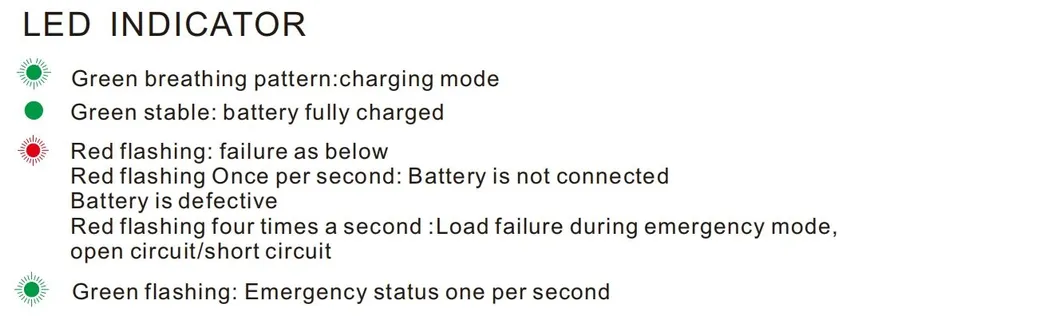

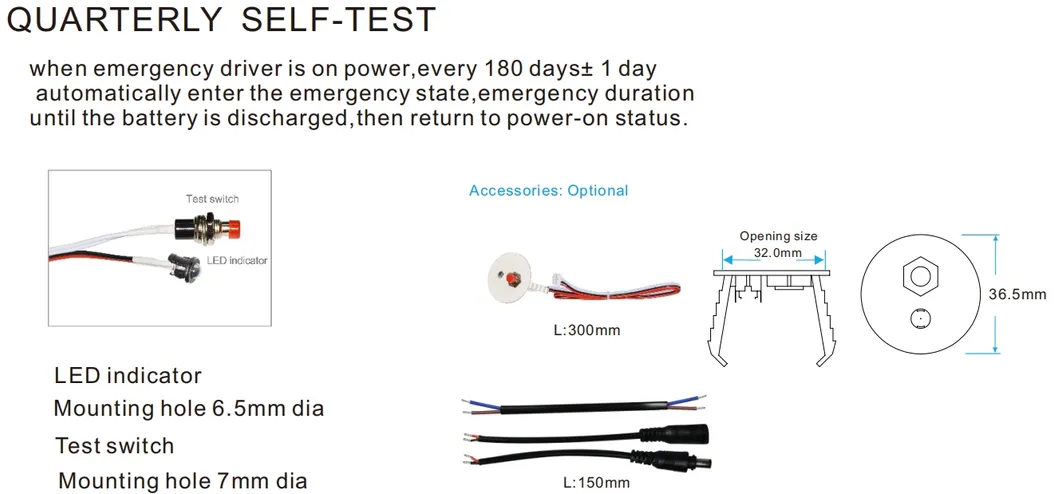

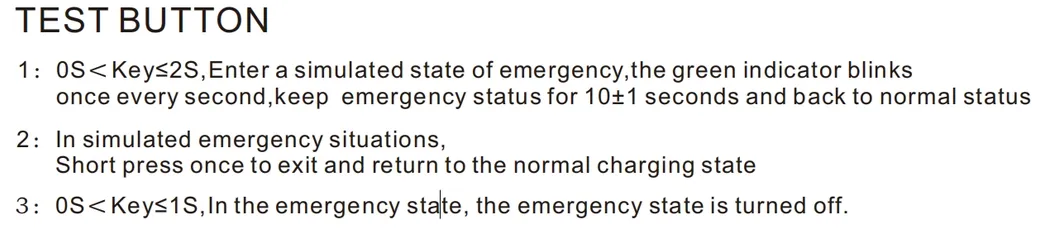

LED and test button status:

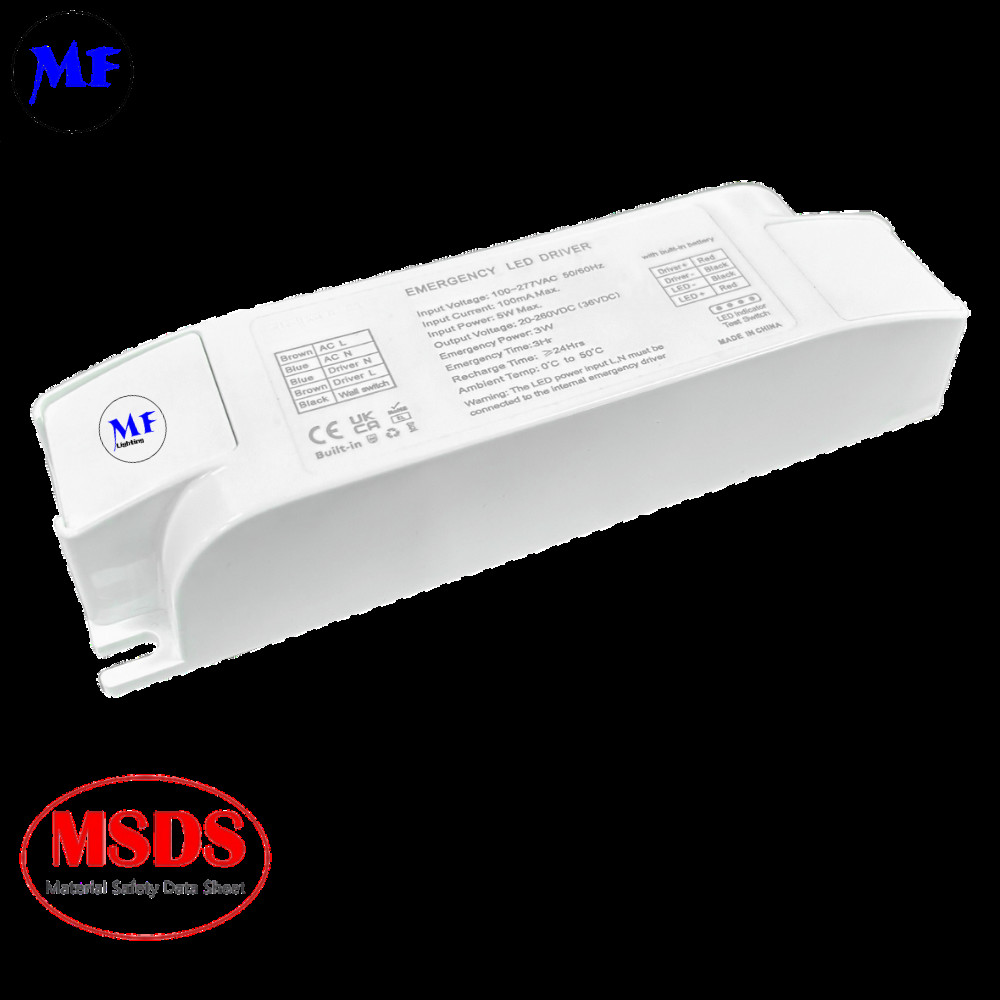

This product is a MF LED Emergency Driver MF - 188C with self - detection, constant - power emergency output, built - in battery and multi - protection functions. It suits for LED fitting with external LED driver. The relevant application scenarios are as follows:
Emergency Lighting for LED Fixtures: When the power is off, it can provide emergency power for LED lights. For example, in case of a power outage in buildings such as offices, homes, shops, and public facilities like schools and hospitals, the LED lights equipped with this emergency driver can still work, ensuring basic lighting needs are met.

Application Scenarios:
1.In educational institutions like schools, it ensures students and staff can safely evacuate during a power outage, especially in classrooms, corridors, and stairwells.
2.For hospitals, where continuous lighting is crucial for patient safety and medical operations, this emergency driver powers emergency lights in patient rooms, operating theaters, and emergency exits.

3.In transportation hubs such as subways, train stations, and airports, it lights up exit signs and provides general emergency lighting, helping passengers find their way out quickly during emergencies.
4.Shopping malls and supermarkets benefit from it as well. During power failures, it illuminates aisles, exits, and emergency exits, ensuring the safety of shoppers and employees.
5.Offices, factories, hotels, basements, and parking lots also rely on this product. In offices, it allows employees to safely leave the building; in factories, it prevents accidents during power outages; in hotels, it helps guests evacuate; and in basements and parking lots, it provides necessary lighting for people to move around safely.
6.In all public places, this emergency driver is essential for powering emergency lights, exit sign lights, and emergency exit lights. These lights include exit sign emergency lights, emergency LED lights, LED emergency lamps, as well as rechargeable emergency lights, battery backup lights, and emergency lamps.
