قرمز IP66 ICAO Low-Intensity L810 Single Aviation Obstruction Light برای جرثقیل برج برج بلند
تماس با شخص : Claire Li
شماره تلفن : 86-15999718117
WhatsApp : +8615999718117
مقدار حداقل تعداد سفارش : | 1PCS | جزئیات بسته بندی : | 210 × 90 × 90 |
---|---|---|---|
زمان تحویل : | 7 هفته | شرایط پرداخت : | L/C، D/A، D/P، T/T، Western Union |
قابلیت ارائه : | 5000 عدد در ماه |
محل منبع: | چین | نام تجاری: | MF |
---|---|---|---|
گواهی: | CCC, CE, EMC, ETL, GS, RoHS, SAA | شماره مدل: | MF-LI-B2-D |
اطلاعات تکمیلی |
|||
منبع نور: | هدایت شده | رنگ های موجود: | قرمز ((رنگ ديگري اختیاري است |
---|---|---|---|
شدت: | ≥32.5cd (نوع B) ، دیگران اختیاری (10cd ، 100cd و غیره | خروجی افقی: | 360 |
واگرایی عمودی: | ≥10 | ویژگی های فلش: | سوزاندن ثابت/20/30/60 قابل تنظیم |
حالت کار: | اصلی و آماده به کار (حالت های دیگر اختیاری هستند) | عمر LED: | eration به عنوان گزینه. تجربه زندگی LED (ساعت)> 100 |
ولتاژ بهره برداری: | DC (48VDC) &AC (110-240VAC) یا موارد دیگر | قدرت: | 5w |
حفاظت مدار: | یکپارچه | مواد بدن: | پلی کربنات |
مواد پایه: | آلومینیوم ریخته گری دایکاست | ||
برجسته کردن: | UV-Resistant Aviation Obstruction Light,Adjustable Aviation Obstruction Light,Adjustable Aviation Obstruction Light |
توضیحات محصول

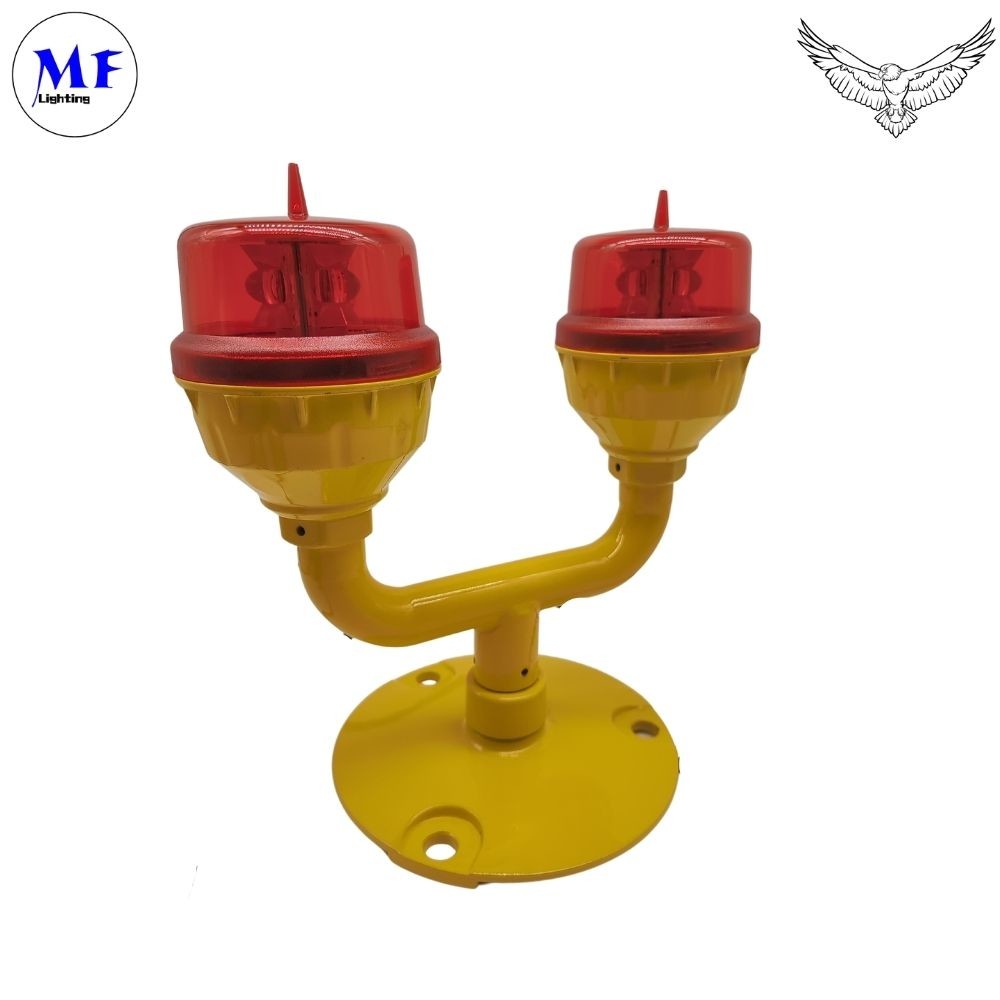

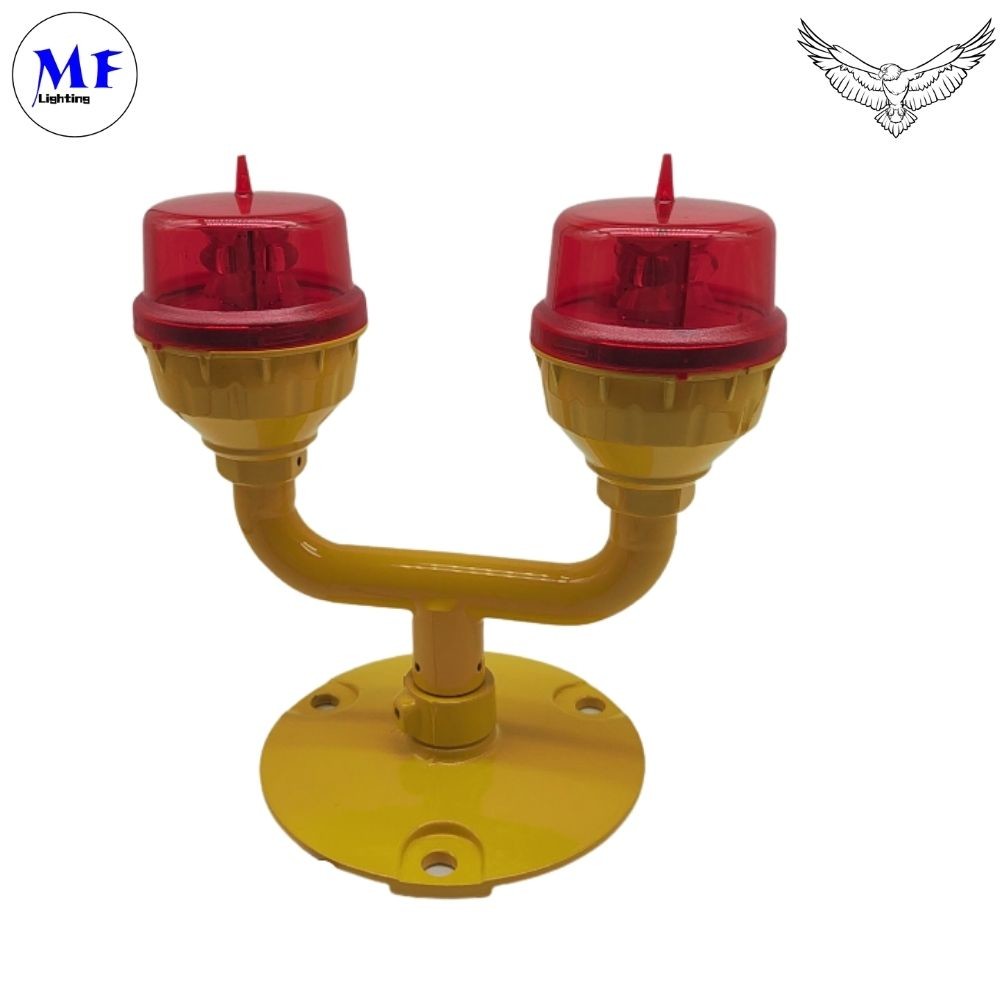

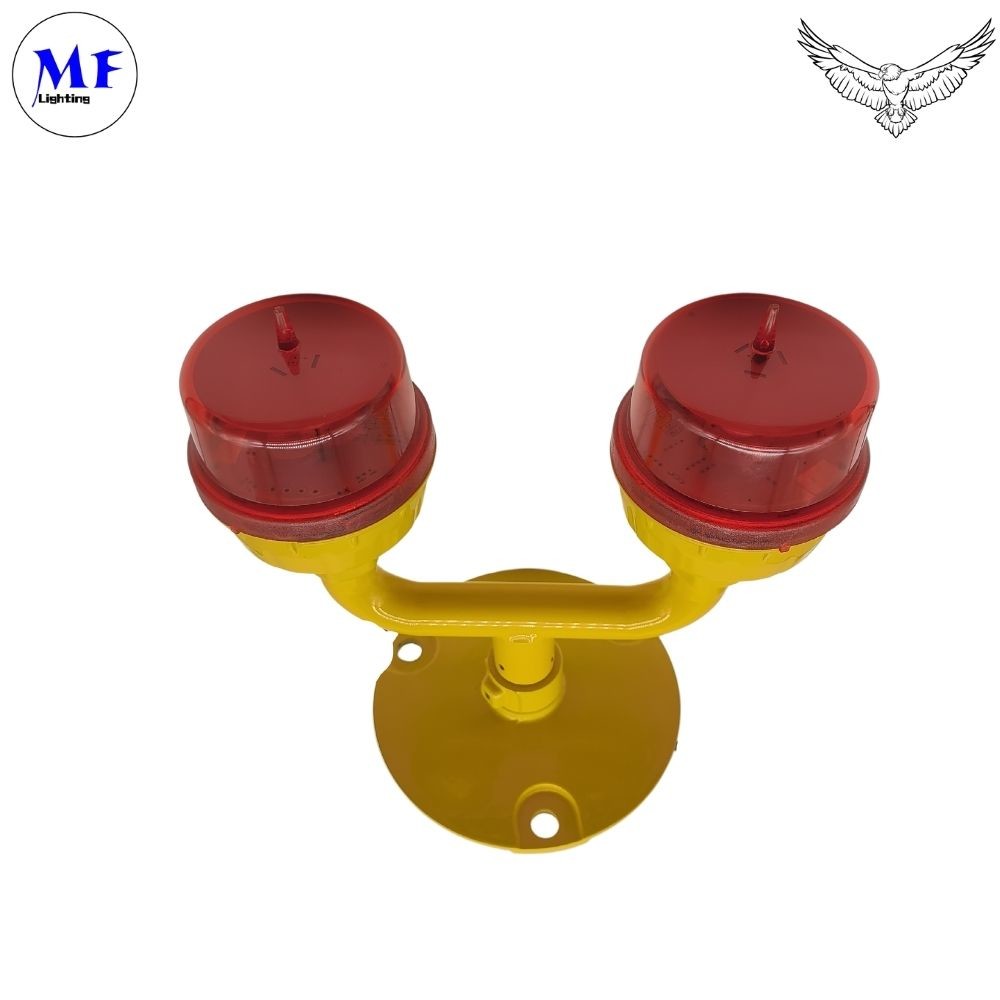

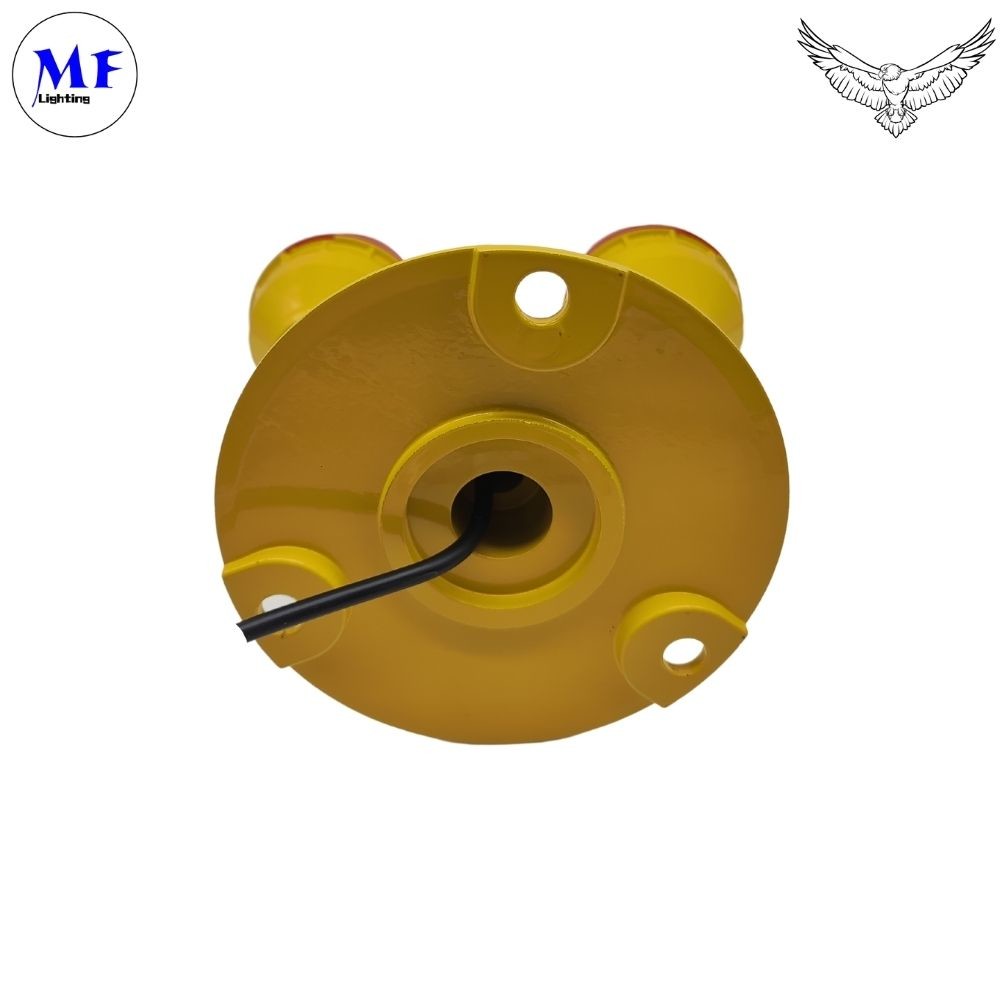

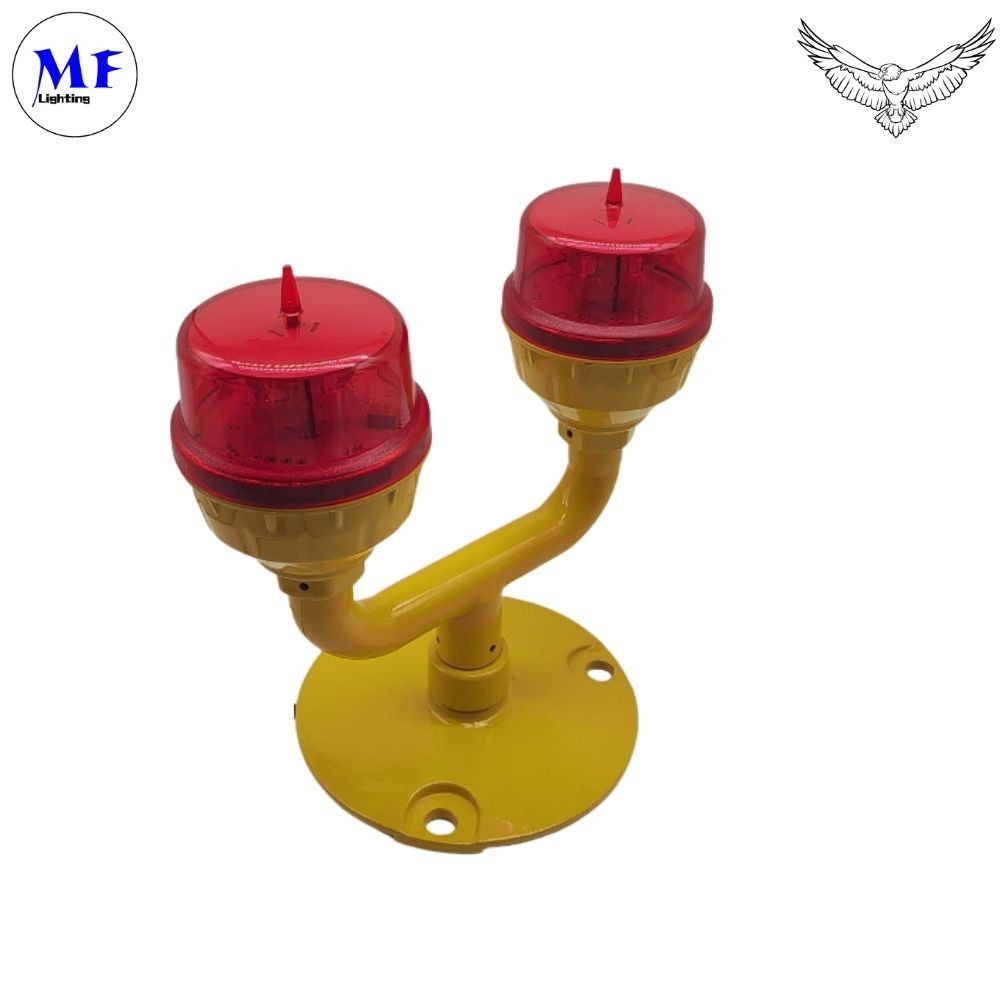

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge
Features:
1. High reliability
Automatic switching of main and backup lamps to ensure continuous marking.
Lightning protection, in accordance with IEC standard.
Integrated circuit protection against abnormalities.
2. Strong environmental adaptability
IP66 waterproof rating.
Operating temperature -40ºC to 65ºC, storage temperature -55ºC to 70ºC.
Resistant to wind speed up to 240km/h.
3. Flexible Design
Support DC48V and AC110-240V power supply.
Built-in light control, automatic switching.
Multiple mounting methods for ease of use.
Key Advantages:
1. High Reliability
Main & standby mode ensures continuous operation.
Built-in surge protection.
Long LED life (>100,000 hours).
2. Durability
IP66 waterproof rating.
UV-resistant polycarbonate cover.
Corrosion-resistant die-casting aluminum base.
3. Adaptability
Dual power supply (DC & AC).
Automatic day/night operation.
Optional GPS sync and solar power.
Light Source | LED |
Available Colors | Red (Other color is optional) |
Intensity (cd) | ≥32.5cd (type B), others optional (10cd, 100cd, etc) |
Horizontal Output (degrees) | 360 |
Vertical Divergence (degrees) | ≥10 |
Flash Characteristics | Steady-burning/20/30/60 adjustable |
Working Mode | Main & stand by (other modes are optional) |
Operation Mode | Dusk-to-dawn Automatically as standard. 24 hours operation as option. |
LED Life Experience (hours) | >100,000 |
Operating Voltage | DC(48VDC) & AC(110-240VAC) or others |
Power (W) | 5 |
Electrostatic | IEC61000-4-2 Contact discharge 8kV |
Circuit Protection | Integrated |
Body Material | Polycarbonate |
Base Material | Die-casting aluminum |
Mounting | 3/4 inch pipe thread or D140mm×M10*3 |
Dimension (mm) | 254×90×210 or 254×165×250 |
Weight (kg) | 1.5 or 2 |
Product Life Expectancy | 10 years plus |
SERVICE
Ming Feng lighting CO.,Ltd providing the OEM & ODM service for all the partners all around the world, Our LED light is in high quality standard at reasonable and competitive price, our designer and engineer help our LED light in tasteful design and excellent performance.We are able to offer our valuable clients:
★ OEM/ODM Serivce
★ Photometric/IES file
★ Dialux simulation design
★ PCB Design/Driver Design
★ Heat Management/Optical Design
★ Industry Design
★ Market Support
★ 3D Printing
★ Multiple Listing/Private Label.
